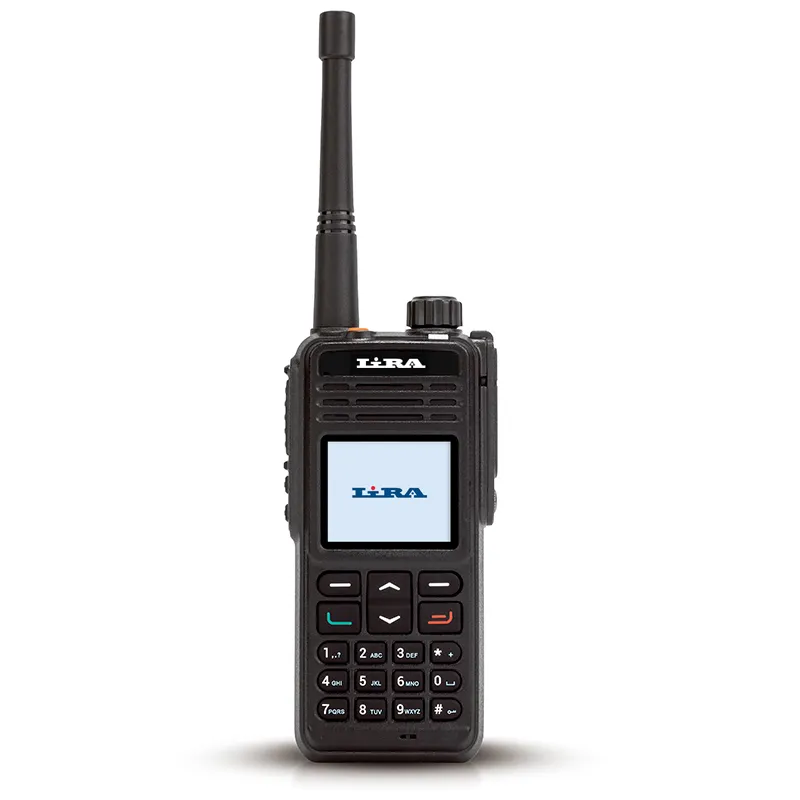

Radio station Lira DP-3800V DMR

The Lira DP-3800V DMR radio station is a modern device designed to provide reliable and high-quality communication in various conditions. It is suitable for use in commercial and industrial applications, as well as emergency services and security.

Technical features of the model

1. Digital communication DMR. The radio station supports the DMR standard. This ensures high sound quality, reduced interference and data transfer capabilities.

2. Two operating modes: The walkie-talkie can operate in analog and digital modes, which allows you to integrate the device into existing communication systems and gradually switch to digital technologies.

3. Four programmable keys. The device is equipped with four programmable keys. This allows the user to customize the radio to suit their needs and quickly access important features.

4. Wide frequency range. The radio station operates in the frequency range 400-480 MHz. This provides flexibility in choosing a communication channel and the ability to operate in different bands.

5. Big screen. The device has a convenient display that allows you to easily view information about channels, signal strength and other parameters.

6. Long lasting battery. The radio is equipped with a high-capacity battery. It ensures long-term operation of the device without recharging. This is especially important in environments where access to power sources is limited.

7. Protection from moisture and dust. The radio has IP67 protection, which allows it to be used in difficult weather conditions and in dusty conditions.

8. Support for security features. The device supports encryption and authentication functions, which ensures the security of transmitted information.

9. Programming interfaces. The Lira DP-3800V can be easily configured via software, allowing users to quickly change settings and manage radio parameters.

10. Compact and lightweight design. The radio has an ergonomic and compact design, making it easy to carry and use in the field.

The Lira DP-3800V DMR radio station is a reliable tool for providing high-quality communications in a wide variety of fields, combining advanced technology and ease of use.

Specifications

• Operating range: 136-174 MHz
• Transmitter output power: 1-5W
• Operating mode: Digital, Analog
• Number of channels: 1024
• Battery capacity: 2300 mAh Li-Pol
• Dust and moisture protection: IP68
• Article: LIRA DP-3800V DMR
• Dimensions HxWxD (mm): 129x56x33
• Operating time in analog mode 5/5/90: 16 hours
• Operating time in digital mode 5/5/90: 21 hours
• Range: up to 16 km
• Speaker sound power: 1 W
• Operating temperature of the radio: -30 ℃…+60 ℃
• Operating voltage: 7.4V
• Channel spacing: 12.5/25 kHz
• Noise reduction system: CTCSS/DCS/STE
• Antenna impedance: 50 ohm
• Frequency stability: ≤±2.5ppm
• Band: VHF
• Environmental protection rating: MIL-STD 810F
• Emission Bandwidth (-30dB): 11.8 kHz - 18.8 kHz
• Relative instability of the transmitter frequency: 10x10-6
• Out-of-band emissions: -65 dB
• Relative spurious emission level: -60 dB
• Threshold sensitivity at S/N ratio=12 dB (SINAD): 0.25 µV
• Adjacent channel selectivity: 70 dB
• Rated sound power: 70 dB
• Sound distortion at rated power: ≤ 5%
• FM Modulation: 8K50F3E/16K50F3E; 4FSK Modulation: 7K60FXD/7K60FXE
• Operating temperature of lithium-ion batteries: -10 to +60 C
