H32X agricultural Drohne für crop spraying

Order the compact H32X agrodrone for spot cultivation of fields

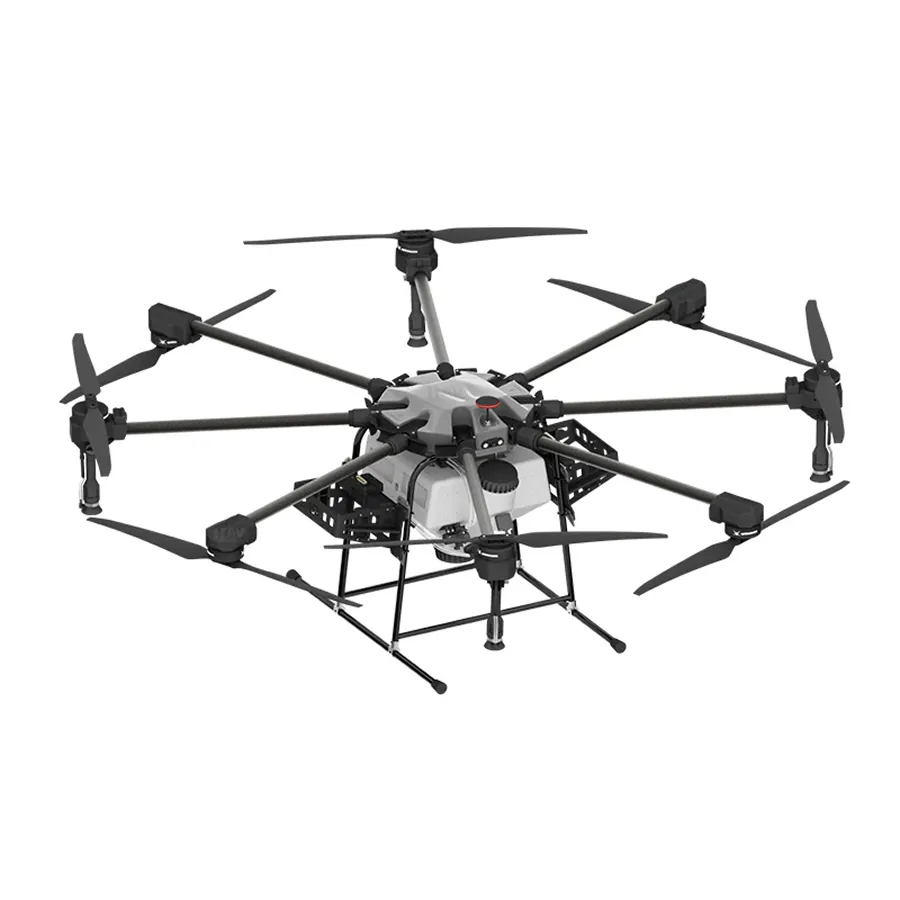

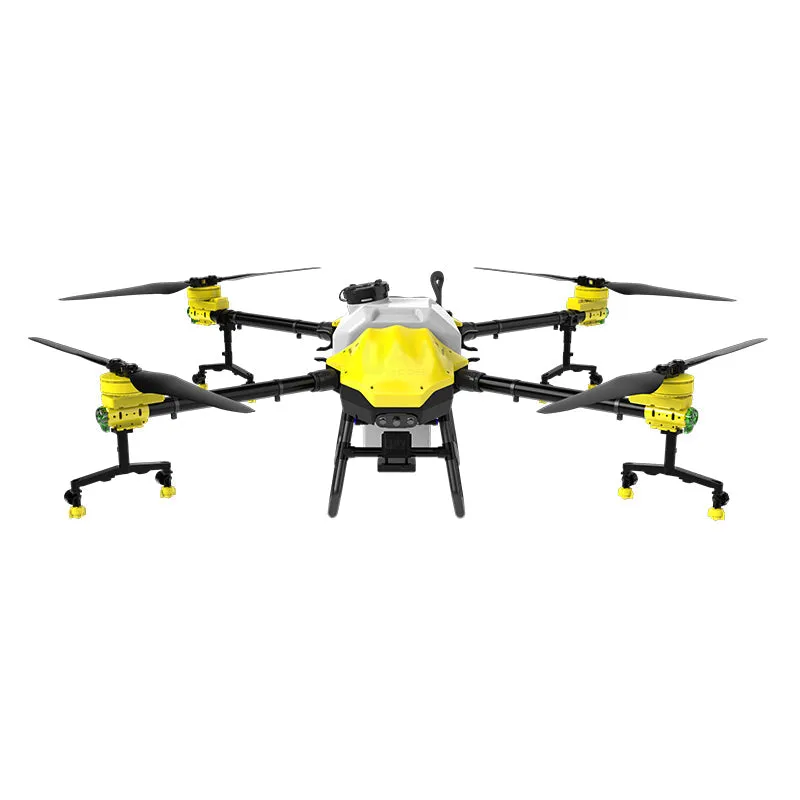

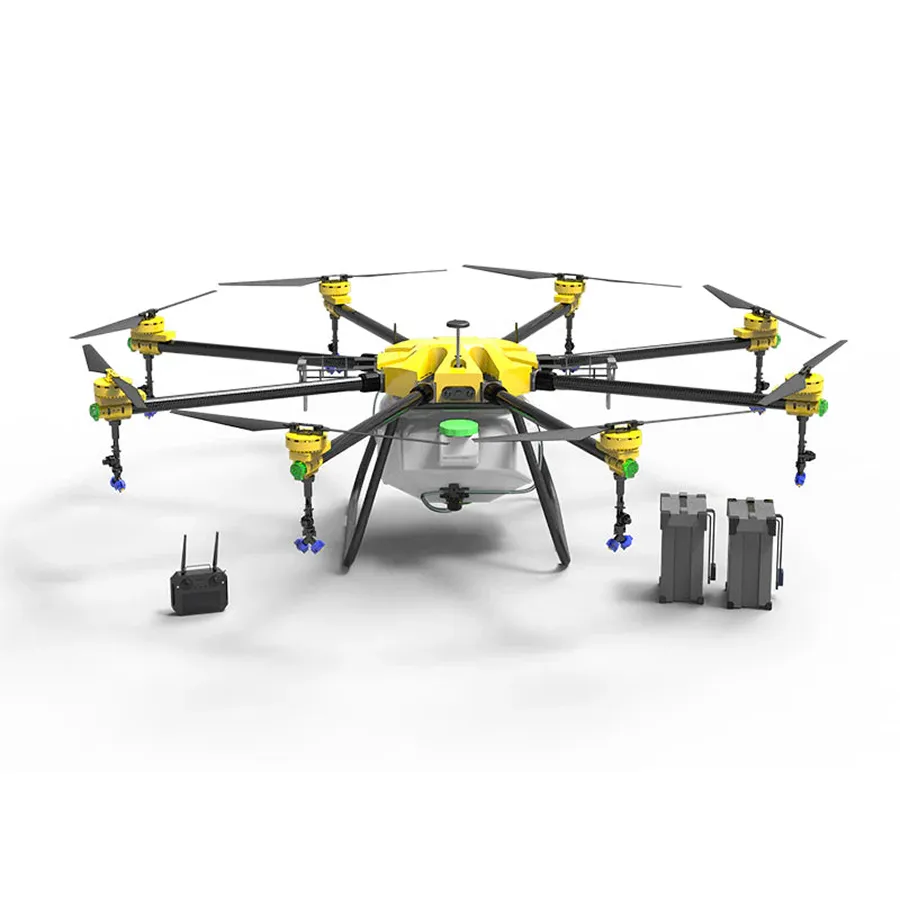

Brand H produces professional agricultural drones of the H32X, H40X, H120, H160 series and Hercules H300 cargo drones. The range includes H12 and H12 Pro remote controls for Android. The company produces smart batteries and powerful charging stations. The products are focused on precision farming.

• Liquid tank with a volume of 16 liters and a granule tank with a volume of 33 liters.
• Eight nozzles with a spray width of up to 12 meters.
• Weight with battery is 23.8 kg for easy transportation.
• IP67 water and dust protection for field work.
• H12 remote control with a 5.5-inch screen and a range of 5 km.

How the H32X agricultural drone works

Four motors lift the drone into the air. The spray system delivers liquid through eight nozzles. Radars scan the terrain and obstacles in front. The autopilot guides the drone along an AB line or autonomous route. The 1080p camera transmits video to the operator's console. You control the spraying from the ground.

Specifications

Frame material is carbon fiber and aircraft grade aluminum. Folded dimensions 1010×610×575 mm. Unfolded 1300×1100×600 mm. Weight without battery 17 kg, with battery 23.8 kg. IP67 protection against dust and moisture.

Maximum take-off weight 39.8 kg. Flight speed up to 15 m/s. Flight altitude is limited to 20 meters. Hang without load for 15 minutes. With a full load 5 minutes.

Liquid reservoir 16 liters. High pressure nozzles, from 8 to 16 pieces. Spray width 4–12 meters. Droplet size is 30–400 µm. The granule distribution system has a capacity of 33 liters. IP67 protection for pellet block.

Technical functionality

The motor develops a thrust of 21.5 kg per engine. Model 34110 folding propeller. ESC can handle 100A current and 65V voltage.

Collision avoidance radar front and rear (2 pcs). Relative walking height ≥2 m. Obstacle avoiding speed ≤8 m/s. The terrain tracking radar operates on a 45° slope. Upgradeable for 360° obstacle avoidance.

HD FPV camera with a resolution of 1920x1080 pixels. H12 remote control with Android OS. Screen 5.5 inches, brightness 1000 cd/m². Signal range up to 5 km. Operating frequency 2400–2483 MHz. Dimensions 190x152x94 mm. Charging via USB Type-C. The operating time of the remote control is 6–20 hours.

Intelligent battery 14S 20000mAh (one piece). Rated power 2400 W. Dimensions 173×110×243 mm, weight 6.8 kg. Charger 2400 W, input 110-240 V. Charging current 50 A (single channel).

• Tank capacity: 16 l
• Operating efficiency: 10 ha/h
• Material: Carbon Fiber + Aircraft Aluminum
• Folded dimensions: 1010 x 610 x 575 mm
• Unfolded dimensions: 1300 x 1100 x 600 mm
• Weight (including battery): 17 kg
• Maximum take-off weight: 39.8 kg
• Nozzles: high pressure, 8–16 pcs.
• Spray Width: 4-12m
• Endurance: 5–15 minutes
• Maximum flight speed: 15 m/s
• Operating mode: auto / AB point / manual
• Avoiding Obstacles: Upgradable
• Flight following the terrain: the possibility of modernization
• 360° obstacle avoidance: no
• Battery: 14S 20000mAh, 1 piece

Aerial platform

• Dimensions (folded): 1010 x 610 x 575 mm
• Dimensions (unfolded): 1300 x 1100 x 600 mm
• Weight (without battery): 17 kg
• Weight (including battery): 23.8 kg
• Waterproof: IP67

Flight parameters

• Maximum take-off weight: 39.8 kg
• Maximum flight speed: 15 m/s
• Maximum flight altitude: ≤20m
• Hover duration: 15 minutes (without load), 5 minutes (with full load)

Spray system

• Liquid reservoir: capacity 16 l
• Nozzles: high pressure type, quantity 8, spray width 4-12m, spray size 30-400um
• Pump: quantity 1, maximum system flow rate 8 l/min

Distribution system

• Capacity: 33 l
• Waterproof: IP67
• Applicable granule size: 1-10mm

Powerplant

• Motor: Max tension (single motor) 21.5kg
• Folding propeller: model 34110
• Electronic speed controller: maximum continuous operating current 100A, maximum operating voltage 65V

Collision avoidance system

• Front and rear collision avoidance radar: quantity 2, obstacle avoidance height ≥2m, obstacle avoidance speed ≤8m/s
• Terrain tracking radar: quantity 1, maximum slope (at flight speed ≤2 m/s) 45°

Camera

• Camera Type: HD FPV Camera
• Video resolution: 1920 x 1080p
• Night Navigation: Bright Night Flight Lights

Remote control

• Model: H12 (Android OS)
• Screen: 5.5 inches, resolution 1920 x 1080, brightness 1000 cd/m²
• Maximum signal range (without interference/obstacles): 5 km
• Operating frequency: 2400–2483 MHz
• Dimensions: 190 x 152 x 94 mm
• Charging port: USB Type-C
• Working hours: 6–20 hours
• Compatible Devices: H32X, H40X, H120, H160, M Series

Energy system

• Smart battery: quantity 1, model 14S 20000 mAh, rated power 60.9 V / 50 A / 2400 W, size 173 x 110 x 243 mm, weight 6.8 kg
• Charging temperature: -40°C to +65°C
• Smart charger: quantity 1, input 110-240V, 2400W, charging output power 50A (single channel), rated power 2400W
