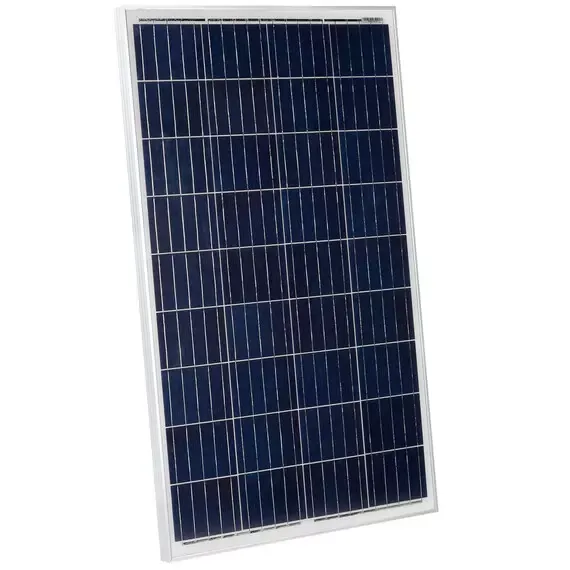

Solar battery Delta SM 100-12 P 100 W poly

 The Delta SM 100-12 P 100 W solar battery is a highly efficient solution for converting solar energy into electrical energy. This panel is widely used in autonomous power supply systems, in country houses and places with limited access to electricity. We offer this battery at a competitive price. Worldwide delivery is available.

Design features of the device

This battery includes 36 photocells of the highest quality, which guarantees high operating efficiency. These elements are enclosed between an aluminum frame and tempered glass. They provide the necessary reliability and allow the battery to be used in the most difficult weather conditions. This model successfully withstands temperature changes, precipitation and exposure to strong winds.

It is also important to note the durability and long service life of the model. The FEM guarantee is 10 years, and to maintain the declared capacity by more than 80% - for 25 years

Specifications

• Photocells
• Technology: Polycrystalline;
• Cell thickness: 220 µm;
• Number of cells: 36 (4×9);
• Quality category: Grade A;
• Electrical parameters (STC):
• Power: 100 W;
• Tolerance: + 3%;
• Rated voltage (Unom): 12 V;
• Voltage at maximum power point (Ump): 18.5 V;
• Open circuit voltage (Uxx): 22.14 V;
• Current at maximum power point (Imp): 5.43 A;
• Short circuit current (Ixx): 5.78 A;
• Maximum series fuse rating: 15 A;
• FEM element efficiency: 16.22%;
• Module efficiency: 13.41%;
• Temperature coefficients:
• NOCT: 47±2 °C;
• By power (Pmax): -0.45% / °C;
• By voltage (Uxx): -0.35% / °C;
• Current(Ixx): 0.04% / °C;
• Operating and storage temperature: -40 ÷ 85°C;
• Mechanical parameters:
• Module dimensions: 1100 x 678 x 35 mm;
• Front glass: Tempered coated glass 3.2mm;
• Frame: Anodized aluminum;
• Terminal box: IP 65;
• Connectors: MC4;
• Cable length: 600 mm;
• Cable cross-section: 4mm2;
• Number of diodes: 2;
• Wind load: 2400 Pa;
• Weight: 8.8 kg.

Recommendations for working with the battery

 Solar battery Delta SM 100-12 P can be used in various fields. It is suitable for summer cottage construction, camping and travel. The battery operates effectively in a wide variety of climate conditions.

To achieve maximum solar panel efficiency, there are several guidelines to follow. First, install the panel at the optimal angle to the sun (30-50 degrees). Use the orientation that matches your geographic location. Secondly, monitor the condition of elements such as wires. Make sure connections are secure and undamaged. Check the cleanliness of the panel surface regularly. Dust and dirt can reduce its effectiveness.
