Communication frequency: 5.725–5.829 GHz
PLN · Orientacyjna cena jednostkowa poglądowa. Ceny hurtowe i projektowe podajemy w ofercie; MOQ i czasy realizacji zależą od produktu.
Dostępność i czasy realizacji
Wysyłka z Hongkongu · DAP lub FOB Hong Kong.
Dostawa śledzona na cały świat
DHL · FedEx · UPS · EMS oraz fracht lotniczy, morski i kolejowy
Gotowe pozwolenie eksportowe
Dokumenty ECCN, CO, CI, PL, EUS
Product prices and shipping quotes do not include import duties, taxes or customs clearance fees — these are charged by the destination customs authority. Estimate them above, or read the import duties & VAT guide.
Oryginalne produkty
Autoryzowana dystrybucja
Wsparcie inżynierskie
Dobór przed sprzedażą i RMA po
Secure, milestone-based payment
T/T 30/70 terms and irrevocable L/C over US$50,000. Funds follow agreed milestones — you never pay an unknown seller upfront.
Payment protectionVetted supplier, Aegisky as contracting window
Suppliers pass KYC/KYB and export-capability review; Aegisky — not an anonymous third party — is your single contracting and communication window.
View supplier profileExport compliance on every controlled order
ECCN classification, sanctions screening and end-use/end-user documentation are handled before quotation is finalised.
Export compliance14-day defective/DOA protection & warranty handling
Defective or dead-on-arrival items are accepted within 14 days via RMA; warranty claims and spare-parts support are handled through the trade desk.
Returns & warrantyCeny komponentów są publiczne. Zaloguj się, aby widzieć ceny flotowe, zapisywać zapytania, śledzić zamówienia i szybciej składać zakupy — konto handlowe założysz w minutę.

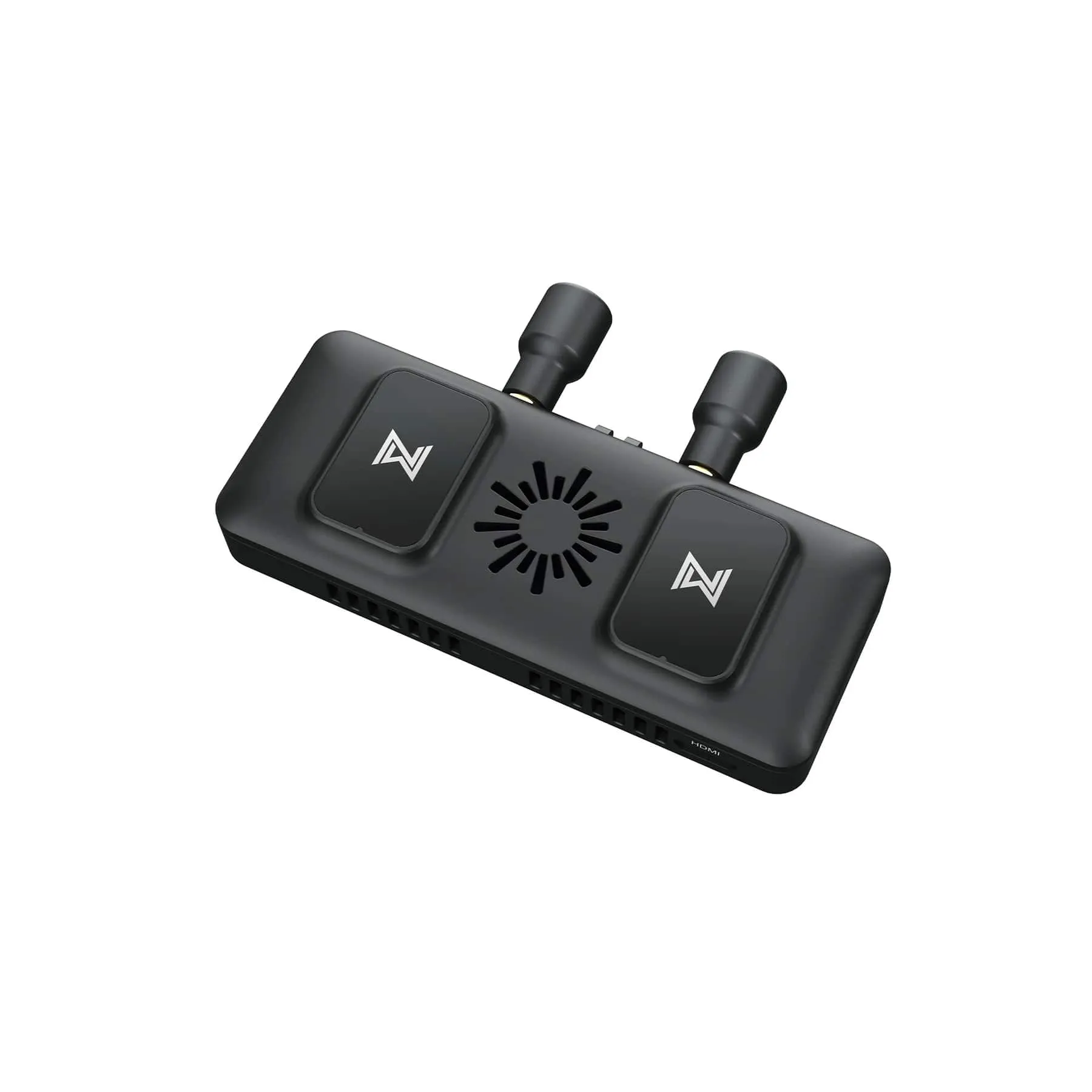

Zaloguj się, aby zamówić →The Walksnail Ascent FPV VRX is a compact external receiver for the Walksnail Ascent digital video system. It allows you to connect digital video signal to any analog FPV goggles or monitor via HDMI output. The Ascent system is designed for beginners and hobbyists looking for an affordable alternative to analog video transmission. It provides significantly cleaner and more stable images compared to analogue.
The receiver picks up a digital radio signal from the video transmitter (VTX) of the Ascent system in the range of 5.725–5.829 GHz. It decodes the signal and outputs the image via HDMI at up to 1080p at 60 frames per second. Two omnidirectional antennas with left circular polarization (LHCP) provide minimal signal loss and reliable reception at distances up to 6 km.
Built-in automatic frequency switching function guarantees a stable signal even in noisy environments. The receiver is equipped with a microSD memory card slot, allowing you to record real-time video without an external DVR. Power is supplied via a DC 5.5×2.1 mm coaxial connector with a voltage of 7.4–25.2 V, which allows it to be connected to 2–6S batteries.
The Ascent VRX model has dimensions of 114.5×64×24 mm and a weight of 118 grams. Frequency range – 5.725–5.829 GHz (with support up to 6.40 GHz). Transmitter Power (EIRP): FCC/SRRC <30 dBm, CE <14 dBm. Bandwidth: 5/10/20 MHz and auto. HDMI output supports resolutions of 1080p at 50/60 fps and 720p at 50/60/100/120 fps.
The receiver is equipped with two RP-SMA connectors for antennas with LHCP polarization and 2 dBi gain. Interfaces: HDMI, microSD slot, DC 5.5×2.1 mm, SH1.0×6PIN and USB Type-C. Video recording format - MP4 (H.264).
Walksnail is a brand of CADDXFPV, one of the leaders in the production of FPV cameras and video systems. The brand is known for its Avatar HD ecosystem, which offers high-quality digital FPV video transmission solutions. Walksnail focuses on low latency, high image quality and accessibility. The brand's products include glasses, video transmitters and cameras, which are integrated into a single ecosystem. The Ascent system is a more affordable line for new pilots looking to upgrade to digital video.
