Order the multifunctional 3-axis gimbal Tarot FLIR VUE PRO TL03FLIR

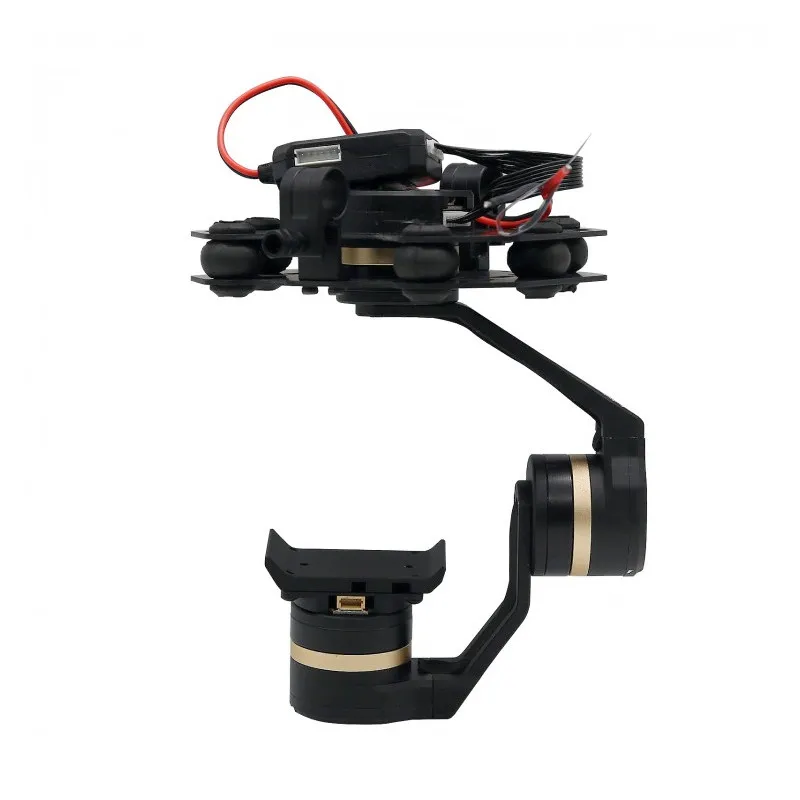

Image stabilization is an important point when using a quadcopter. When using a drone, it is important to immediately prepare the gimbal for it. This is what ensures smooth and stable footage. The Tarot FLIR VUE PRO TL03FLIR gimbal is specifically designed to work with FLIR Vue Pro thermal imaging cameras.

Main Features

The design is made of high quality materials. Carbon fiber and aircraft-grade aluminum make the gimbal lightweight and durable. This allows you to use it in a variety of environments without worrying about its reliability.

The suspension guarantees a high degree of stabilization on three axes (pan, tilt and roll). This minimizes the impact of vibrations and jitter that occur during flight. Image clarity and stability are guaranteed.

The model is designed specifically to work with FLIR Vue Pro cameras. This promotes optimal integration and maximum efficiency. Users receive high-quality thermal images and real-time video.

The design is equipped with a convenient control interface, which allows you to quickly configure device operating parameters. Users can easily change operating modes and adapt settings to specific tasks.

Durability and energy efficiency. The Tarot FLIR VUE PRO TL03FLIR gimbal has a long battery life. You can carry out long operations without the need for frequent recharging.

The gimbal supports various operating modes – object following mode or blocking mode.

Scope of application

• Agriculture. Used to monitor the condition of crops and identify problems with the crop.
• Construction and inspection. Allows detailed inspections of buildings, identifying heat leaks or other potential problems.
• Rescue operations. Effective in locating people in difficult environments such as forests or mountainous areas due to its ability to detect heat signals.
• Environmental protection. Used for monitoring wildlife and ecosystems, as well as assessing the consequences of environmental disasters.

Specifications

• Applicable camera types: FLIR Flir 336Pro, 640Pro imaging camera
• Input Power: 3S-6S Li (11-26V)
• Operating current: 30mA (at 25V) / 50mA (at 12V)
• Shutdown Current: 350mA (at 25V) / 700mA (at 12V)
• Orientation control accuracy: ±0.02 degrees
• Maximum Controlled Speed
• Rotation direction (PAN): ±200°/C
• Tilt direction (TILT): ±200°/S
• Rolling direction (ROLL): ± 200 °/S
• Controllable rotation range
• Rotation direction (PAN): ±125°
• Tilt direction (TILT): -120° to +80°
• Rolling direction (ROLL): ±50°
• S-Bus/PPM/DSM receiver support
• Working environment temperature: -20℃~+50℃
• Maximum dimensions (with camera): 85 mm * 100 mm * 101 mm.
