Type: Digital FPV system based on OpenIPC
PLN · Orientacyjna cena jednostkowa poglądowa. Ceny hurtowe i projektowe podajemy w ofercie; MOQ i czasy realizacji zależą od produktu.
Dostępność i czasy realizacji
Wysyłka z Hongkongu · DAP lub FOB Hong Kong.
Dostawa śledzona na cały świat
DHL · FedEx · UPS · EMS oraz fracht lotniczy, morski i kolejowy
Gotowe pozwolenie eksportowe
Dokumenty ECCN, CO, CI, PL, EUS
Product prices and shipping quotes do not include import duties, taxes or customs clearance fees — these are charged by the destination customs authority. Estimate them above, or read the import duties & VAT guide.
Oryginalne produkty
Autoryzowana dystrybucja
Wsparcie inżynierskie
Dobór przed sprzedażą i RMA po
Secure, milestone-based payment
T/T 30/70 terms and irrevocable L/C over US$50,000. Funds follow agreed milestones — you never pay an unknown seller upfront.
Payment protectionVetted supplier, Aegisky as contracting window
Suppliers pass KYC/KYB and export-capability review; Aegisky — not an anonymous third party — is your single contracting and communication window.
View supplier profileExport compliance on every controlled order
ECCN classification, sanctions screening and end-use/end-user documentation are handled before quotation is finalised.
Export compliance14-day defective/DOA protection & warranty handling
Defective or dead-on-arrival items are accepted within 14 days via RMA; warranty claims and spare-parts support are handled through the trade desk.
Returns & warrantyCeny komponentów są publiczne. Zaloguj się, aby widzieć ceny flotowe, zapisywać zapytania, śledzić zamówienia i szybciej składać zakupy — konto handlowe założysz w minutę.

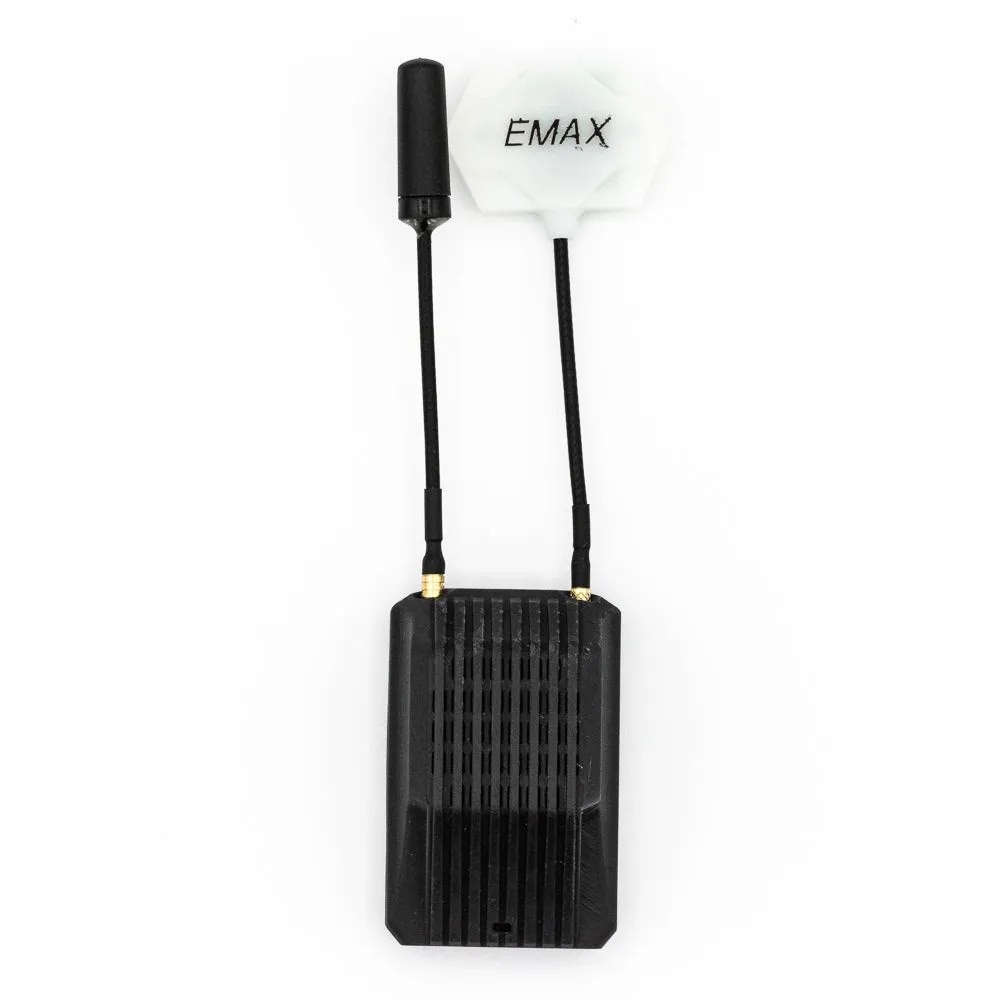

Zaloguj się, aby zamówić →EMAX OpenIPC Wyvern Link Alpha is a digital FPV video transmitter (VTX) with open source OpenIPC firmware. The model is designed for pilots who want to get a pure HD signal without being tied to proprietary ecosystems. Wyvern Link Alpha is a turnkey solution that simplifies the deployment of an OpenIPC system. It is suitable for long-range flights, wings and GPS drones.
The EMAX brand is a well-known manufacturer of FPV equipment. The company produces racing drones Tinyhawk, Babyhawk and Cinehawk. EMAX also produces motors, propellers and flight controllers. The brand's products are popular among pilots around the world.
A camera with an IMX415 sensor transmits video via a MIPI cable to the transmitting module. The module converts the signal into a digital stream and sends it via Wi-Fi to the receiver. OpenIPC provides low latency and high image quality. You control settings via your computer, connecting via Ethernet or USB-C. Two antennas with u.FL or MMCX connectors improve reception. The drone transmits video to glasses or a monitor with OpenIPC support.
The 200mW model is suitable for lightweight drones and sub-250g builds. Camera weight is 13.76 g, size - 14x14 mm. 800mW V2 model features aluminum housing and fan. Its weight reaches 48.2 g, the camera size is 19x19 mm. The 800 mW version has mounts 20x20 mm and 25.5x25.5 mm. Both models operate on 2–6S (7–26 V) batteries. They support 1080p at 90 fps or 720p at 120 fps.
Frequency range - 5.8 GHz with 40 standard channels. Power is adjustable from 25 to 800 mW. Transmitters use u.FL or MMCX connectors for antennas. 800mW model comes with LHCP SMA antennas and MMCX adapters. 200 mW version includes two u.FL linear antennas.
