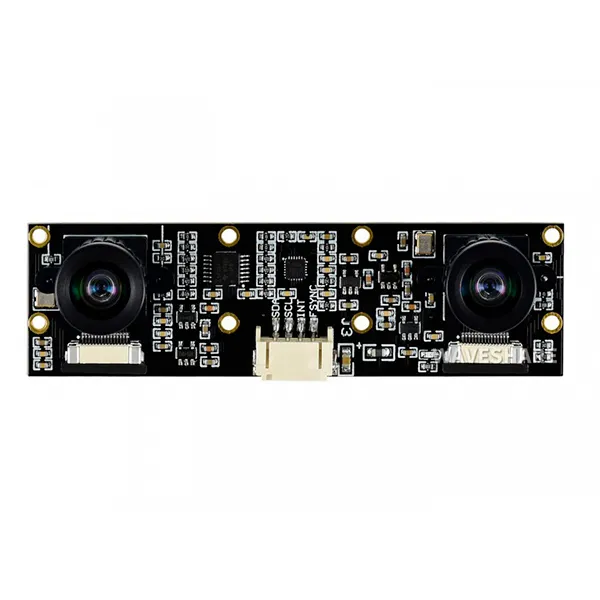

Camera IMX219-83
Module supports версию NVIDIA Jetson Nano Developer Kit B01, but also board expansion Raspberry Pi CM3 / CM3 +, such as Compute Module Io Board Plus, Вычислительный module POE Board and т.д.
USD · Volume pricing available
Kategori:
Certifications
Global Shipping 7-14 Days
DHL, FedEx, UPS, Air & Sea
Genuine Products
Authorized distribution
Export License Ready
ECCN, CO, CI, PL, EUS docs
24/7 Tech Support
Pre & post sales
Export Compliance
EAR99AI confidence 85% · NLR — No license required. Standard end-use statement recommended.
Buyer Tier Benefits
Tier discounts stack with volume pricing. Automatically applied after your first order.
Sensor: Sony IMX219
Resolution: 3280 × 2464 (on камеру)
Specifications lens:
Size CMOS: 1/4 inch
Focal Length: 2.6 mm
Field of View: 83/73/50 degrees (diagonal / горизонталь / вертикаль)
Искажение:<1%
Basic length: 60 mm
ICM20948:
Accelerometer:
Resolution: 16 bit
Range measurement (configured): ± 2, ± 4, ± 8, ± 16 g
Operating Current: 68.9 µA
Gyroscope:
Resolution: 16 bit
Range measurement (configured): ± 250, ± 500, ± 1000, ± 2000 ° / сек
Operating Current: 1.23 mA
Magnetometer:
Resolution: 16 bit
Measurement range: ± 4900μT
Operating Current: 90uA
Size: 24mm × 85mm
