Anmelden & bestellen →Sunnysky is a Chinese brand founded in 2008. The company specializes in brushless motors for RC models. The range includes engines from the X, V, Z and Angel series. Sunnysky produces motors for drones, aircraft and multi-rotors. The products are known for high quality and reliability. The brand is popular among pilots around the world.
The three phases of the stator windings create a rotating magnetic field. The rotor's permanent magnets follow the field. The electronic controller (ESC) controls the phase switching. High rotation speed creates thrust for the drone. The absence of brushes makes the engine very durable.

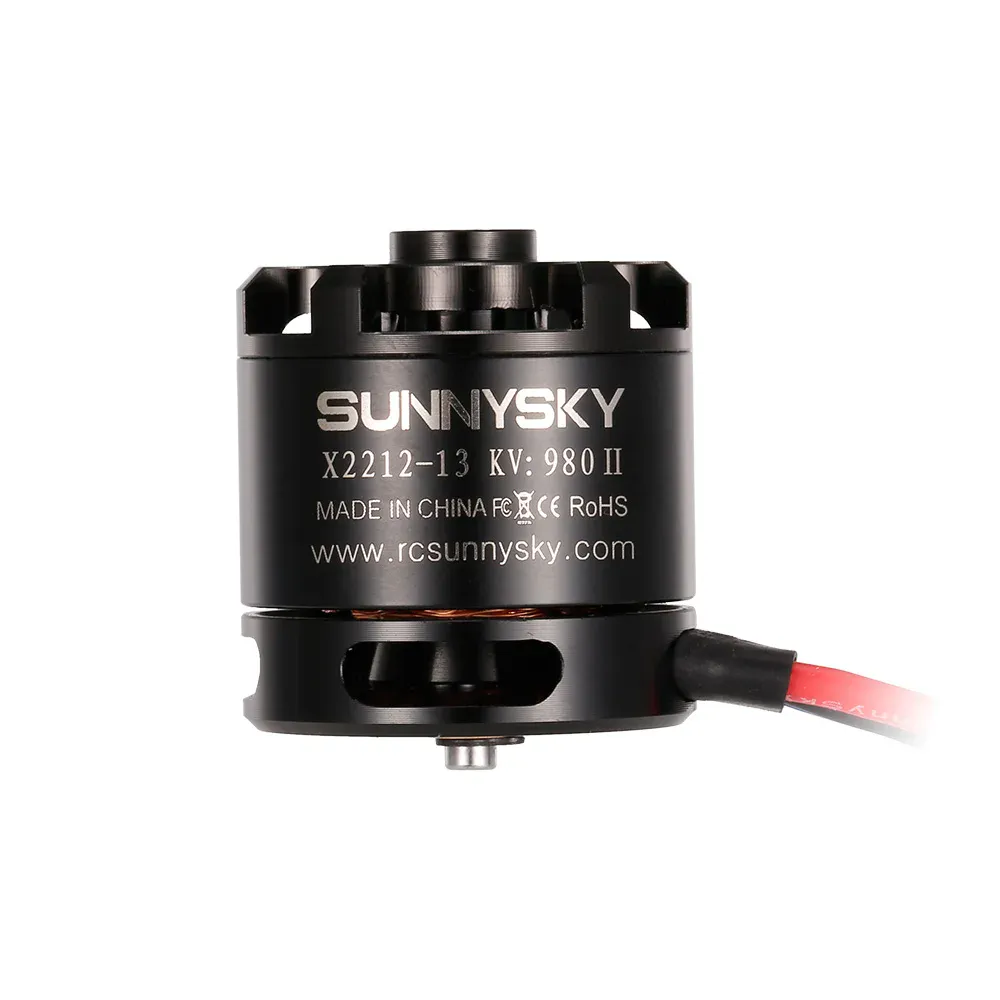

Stator diameter 22 mm, thickness 12 mm. The number of stator arms is 12, the rotor poles are 14. The KV of the motor is 980 revolutions per volt. Winding resistance is 133 milliohms. Maximum continuous current 15 amps (up to 30 seconds). Maximum power 300 watts. Peak thrust 1020 grams. Rotor diameter 27.5 mm. Shaft diameter 3.175 mm. Case length 30 mm. The total length of the shaft is 32.5 mm. The motor weighs about 57 grams.
Recommended ESC 20 amp. Operating voltage 2-4S LiPo. Recommended propellers: APC 8x3.8, 9x4.7, 10x4.7, 8x4.3. The motor is suitable for airplanes and quadcopters. Ideal for light gliders and multi-rotors. Low idle current saves battery. High torque is effective with large propellers.
